Optical Coordinate Measuring System For Inspection And Engineering: Up To 2 Micron Accuracy
The Artec Metrology Kit comes in two versions. The Entry version is designed for less demanding engineering use cases, while the Professional version provides higher accuracy and is designed to make photogrammetry in more challenging environments easier.
Features
DAkkS-certified 6DoF optical measurement: Complete optical coordinate measuring system with an accuracy of up to 2 microns. The camera resolution of up to 30.3 megapixels, a 28-mm wide-angle lens, measurement targets, adapters, and scale bars.

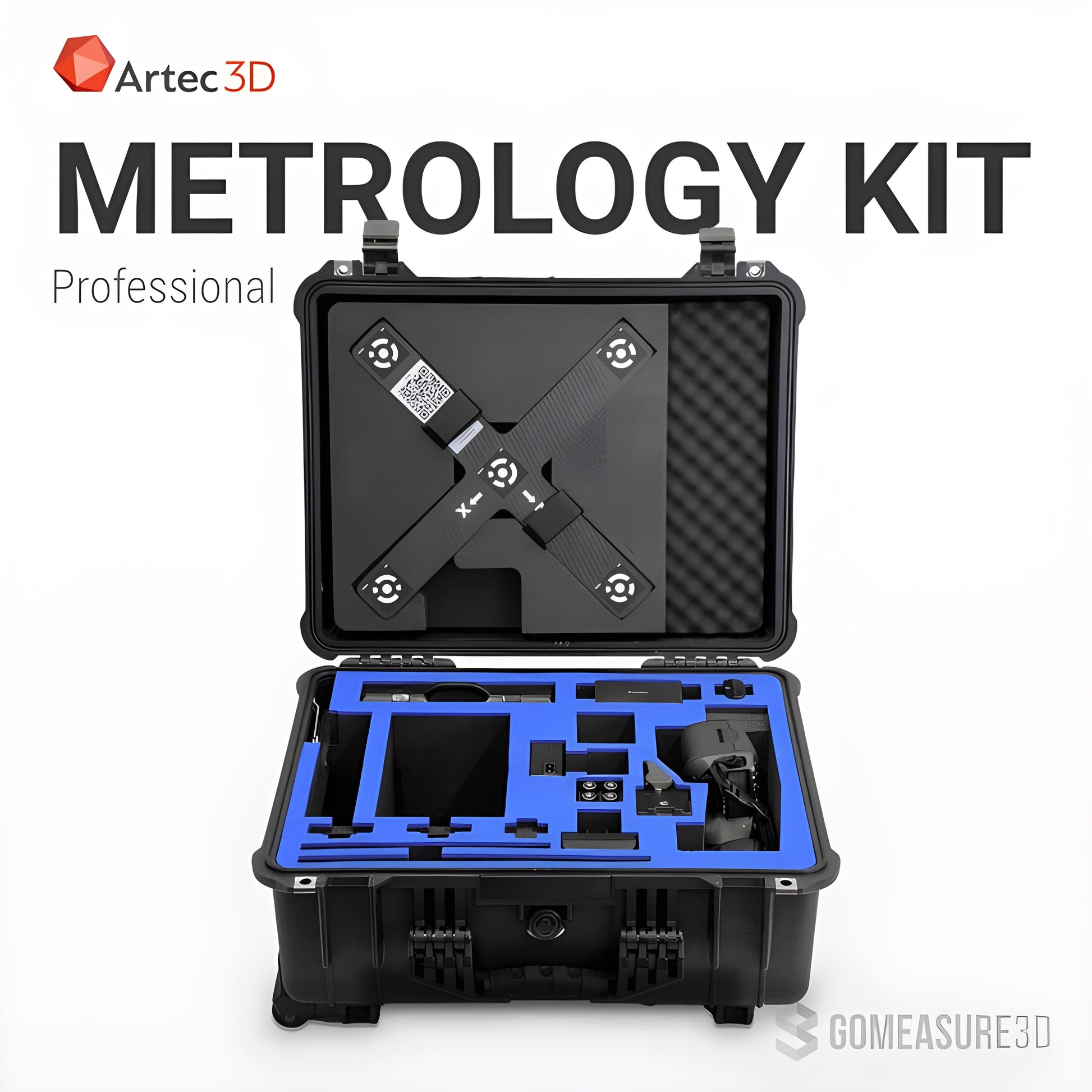

Use it anywhere: The Kit fits in a rugged, portable case, and with dynamic referencing, you can capture objects in motion – perfect on sites where it’s impractical to use traditional measuring machines and other 3D measurement tools.
Compatible with different software:The Artec Metrology Kit is compatible with industry-leading software solutions like Geomagic Control X, PolyWorks, and many more.
How It Works

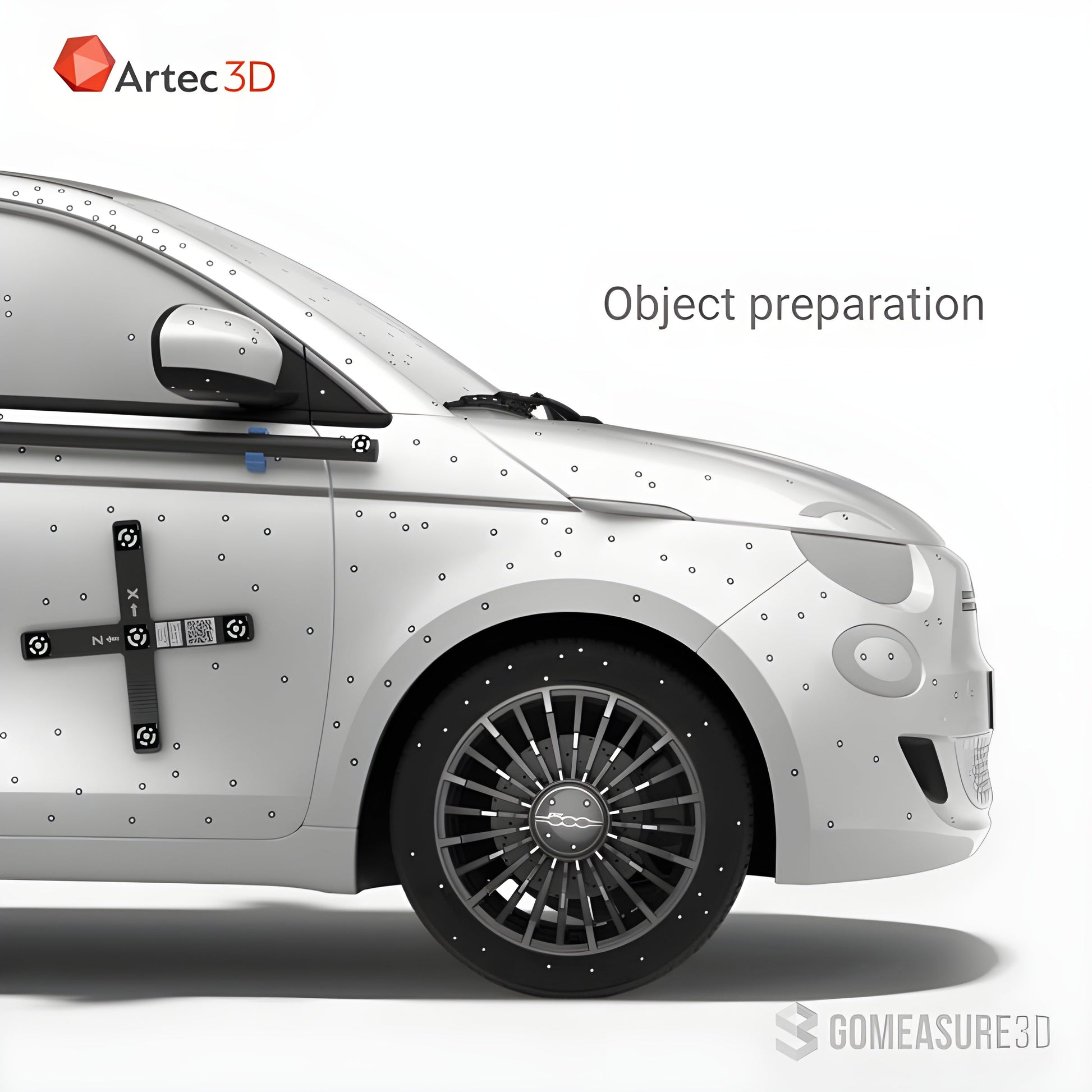

Object preparation: Place targets, reference crosses, and scale bars on surfaces around the object to ensure they do not move relative to the object throughout the capture process.

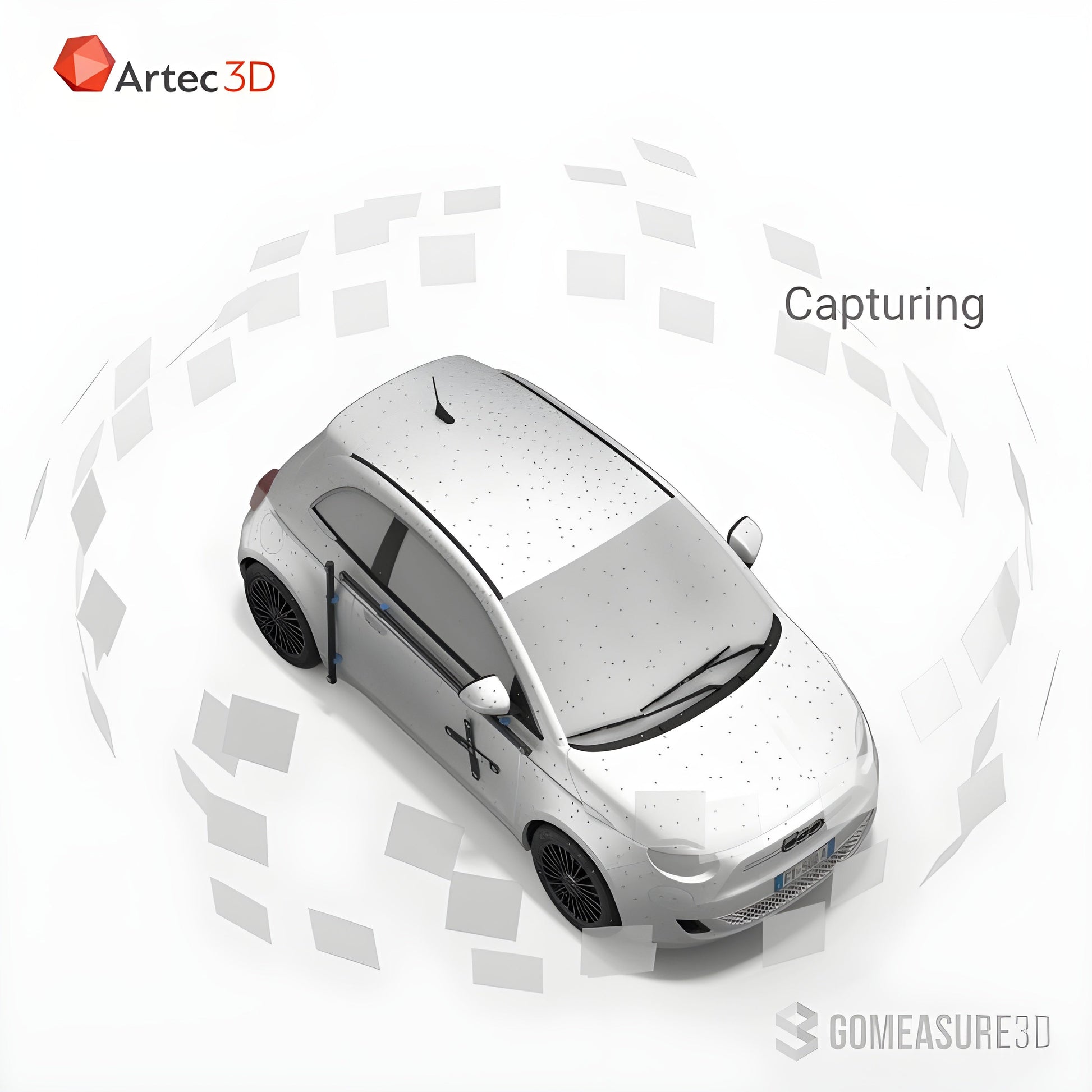

Capture: Systematically take pictures at different heights, creating a kind of dome around the object with the camera positions. Capture each target at least 6 times, and the reference cross from four perpendicular angles.

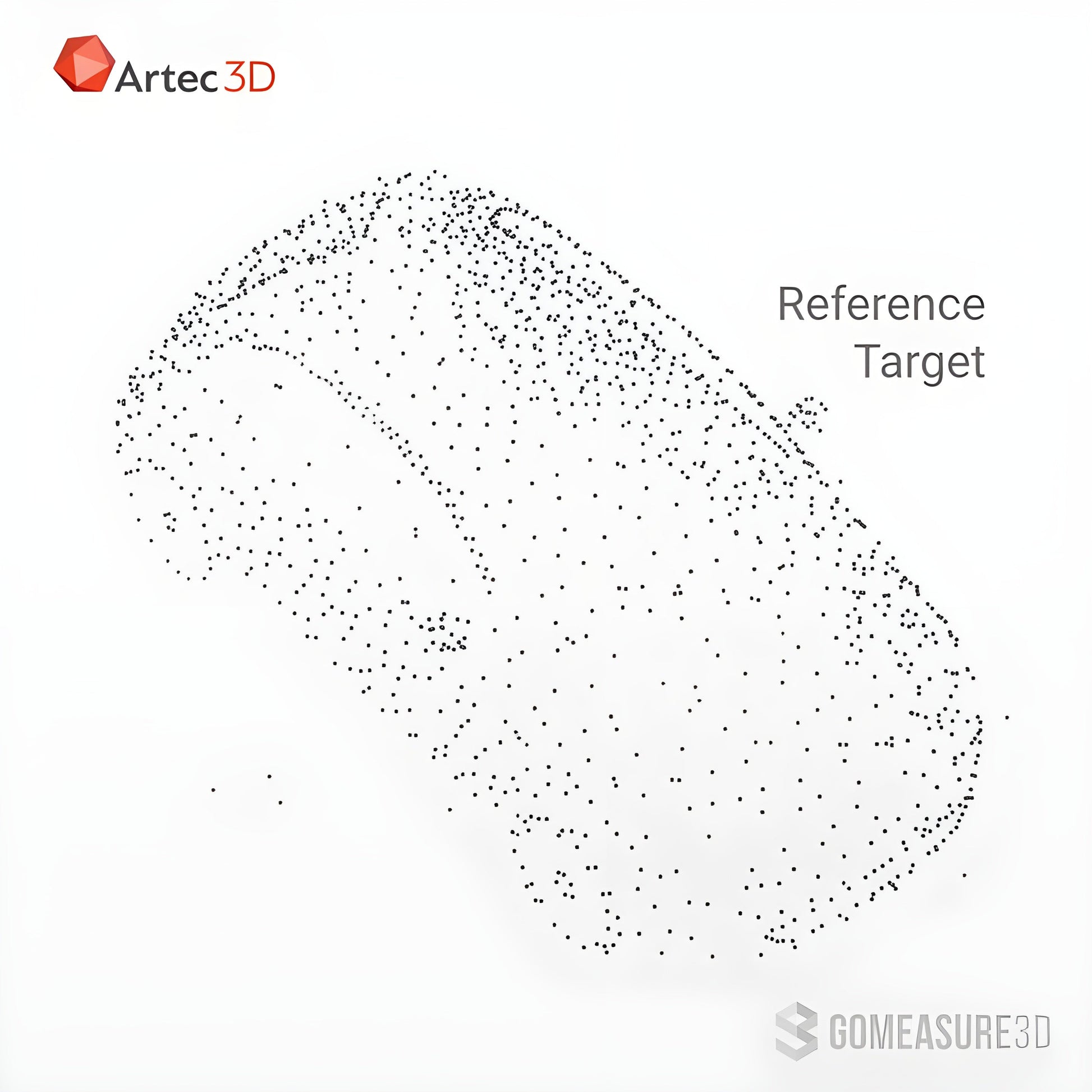

Processing: Import the images into Artec Studio, with the Metrology Kit plugin installed, or your favorite photogrammetry software, to generate a target cloud.

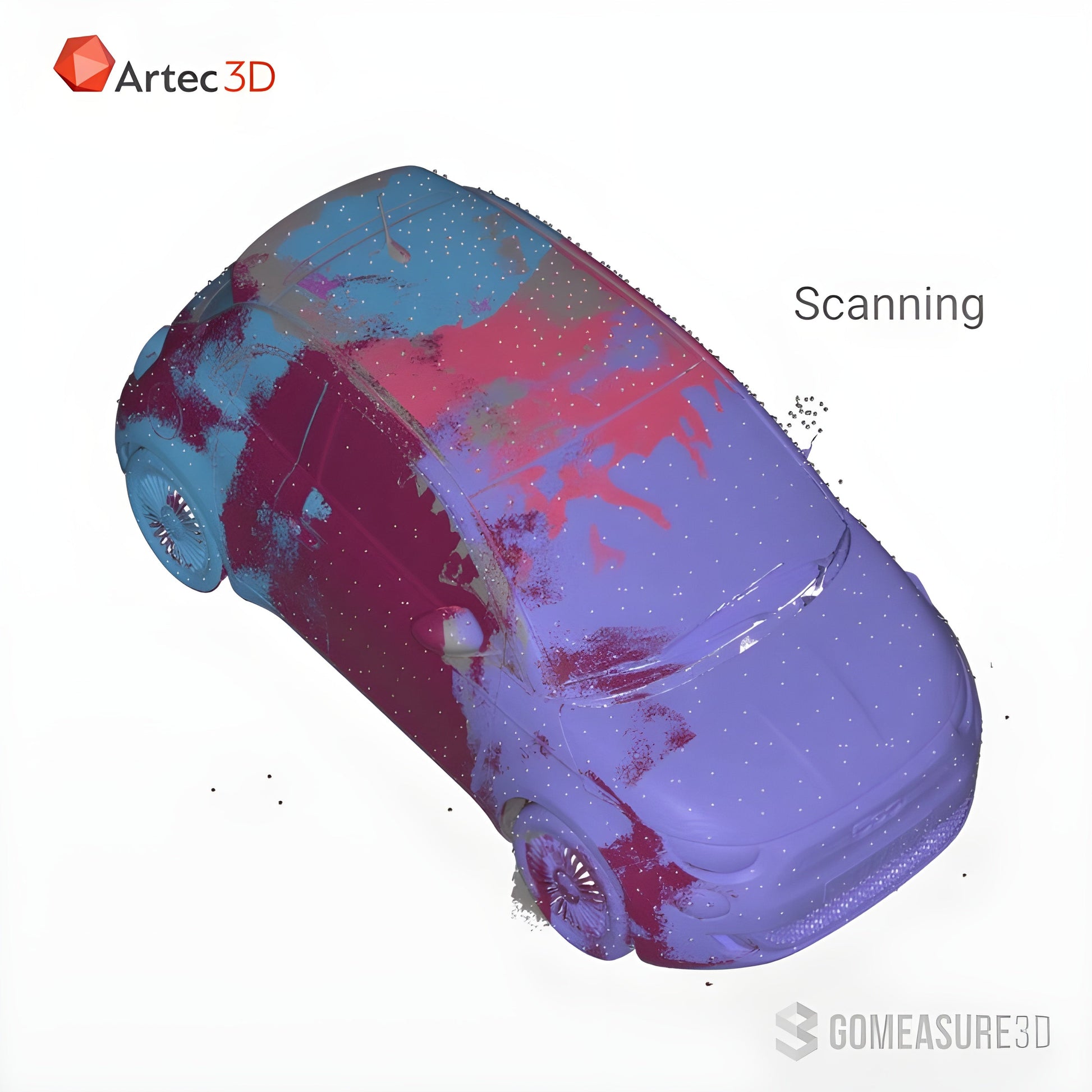

Reporting: Use the resultant point cloud for deformation analysis, flatness inspection, general dimensions measurement, or your own specific engineering use case.
Includes
30.3-megapixel digital camera
Point-based accuracy (RMS) up to 0.002 mm + 0.005 mm/m
Length measurement accuracy up to 0.015 mm + 0.015 mm/m
Metrology Kit plugin for Artec Studio
Adjustable camera settings
Separated reference cross and scale bar for larger and more complex parts
Advanced Precision – Designed for metrology-grade accuracy, perfect for high-precision industrial applications.
Enhanced Calibration Tools – Includes advanced components for optimal scanner performance, ensuring top-tier data quality.
Comprehensive Solution – Ideal for users who require a complete metrology setup for consistent, repeatable results.
Durable & Reliable – Built to withstand tough environments and heavy use, ensuring long-term performance.
Efficient Workflow – Streamlines scanning and data processing, saving time and improving productivity.
Q&A
Q: What is the Artec Metrology Kit: Professional Version? A: The Professional Version is an advanced metrology kit designed for high-precision 3D scanning, providing tools and accessories for extremely accurate measurements and calibration.
Q: What does the Professional Version include? A: It includes high-precision markers, calibration equipment, and professional-grade software that enhance the accuracy and performance of Artec 3D scanners for metrology applications.
Q: Who is this kit intended for? A: Ideal for professionals in fields like manufacturing, aerospace, automotive, and engineering, where precision and accuracy in scanning are critical.
Q: How is this version different from the Entry Version? A: The Professional Version offers more advanced tools, higher precision calibration, and enhanced software features for more demanding metrology tasks.
Q: Is this kit compatible with all Artec scanners? A: Yes, the Professional Metrology Kit is designed to work with a variety of Artec 3D scanners, offering enhanced capabilities across the range.
Q: Does the kit include any software? A: Yes, the kit includes specialized metrology software designed to optimize the performance and accuracy of Artec scanners for high-precision tasks.
Maintenance Tips
Clean Regularly – Wipe down all components with a soft, lint-free cloth to remove dust and dirt. Avoid abrasive materials.
Store in a Secure Place – Keep the kit in a protective case or a dry, cool environment to prevent damage.
Perform Regular Calibration – Regularly calibrate your components to maintain high accuracy in measurements.
Check for Wear and Tear – Inspect the components for any signs of damage or wear that could affect performance.
Update Software and Firmware – Ensure the software and firmware are up to date for improved functionality and compatibility.
